Tantalum Carbide Guide Ring

Name: Tantalum Carbide Guide Ring
Brand: SiC Graphite
SKU: tac-coated-guide-ring
Availability: InStock
Rating: 4.9 (24 reviews)

TaC coated graphite guide rings and flow-control rings for SiC PVT hot zones. Built for extreme-temperature vapor guidance, reduced erosion risk, and drawing-based retrofit programs.

Target Buyer:Crystal-growth furnace engineers replacing eroded rings, flow guides, and vapor-zone graphite hardware.

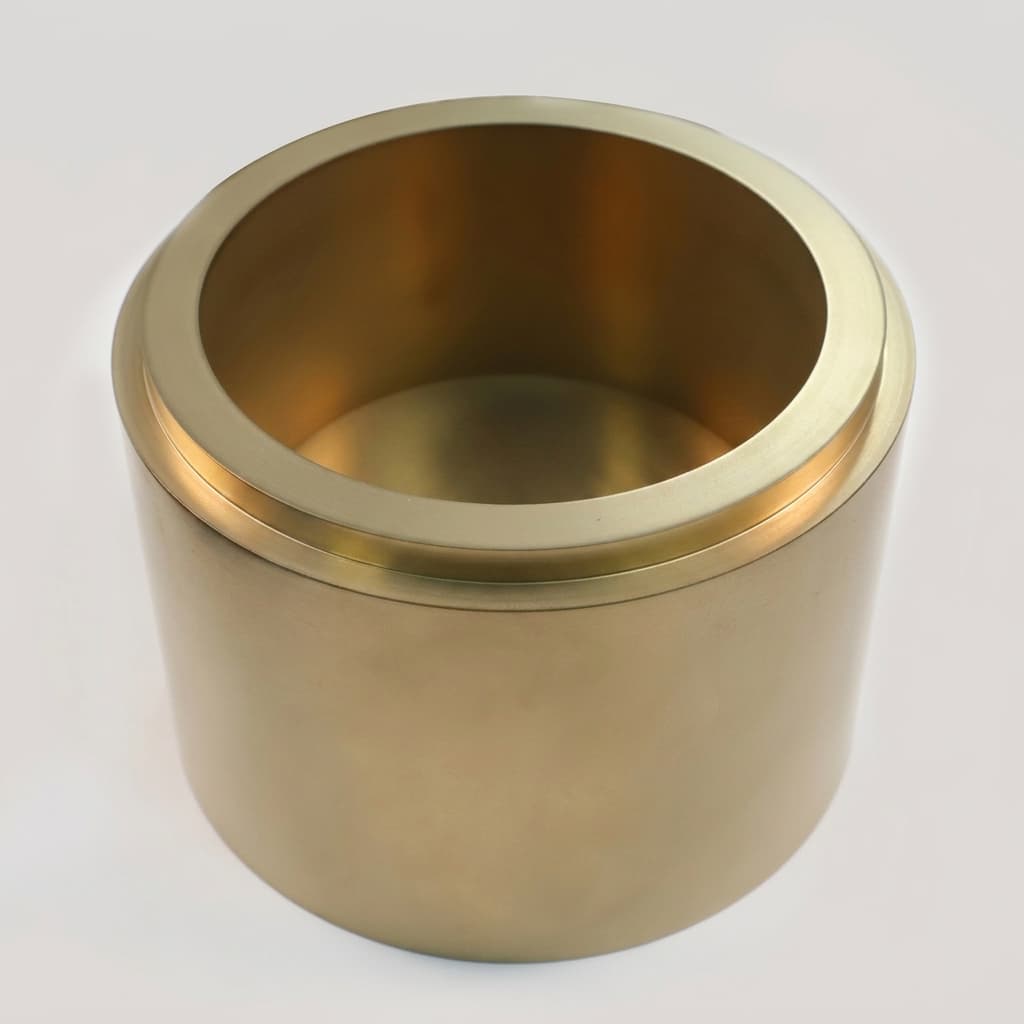

Tantalum carbide coated graphite guide ring for SiC PVT hot zone 1

Capability Highlights

High-temperature vapor-facing TaC coating scope
Custom OD, ID, groove, and edge-radius geometry from drawings
Designed for guide, flow, and shielding positions inside PVT hot zones

Typical Applications

SiC PVT Guide Rings
Crystal Growth Flow Control
Ultra-High-Temperature Hot-Zone Shields

Engineering Focus

Ring flatness and roundness
Coating coverage at edges and grooves
Thermal-cycle durability

Key Evaluation Matrix

Metric	Typical Range	Why It Matters
Geometry Control	Drawing-defined OD, ID, groove, and flatness targets	Guide ring geometry influences vapor flow, thermal gradients, and repeatable furnace assembly.
Coating Coverage	Buyer-marked TaC surfaces and masked areas	Edges and grooves are common erosion points when coating maps are vague.
TaC Coating Route	CVD TaC on high-purity graphite substrate	The coating route must match geometry, vapor exposure, and thermal-cycle stress.
Ultra-High-Temperature Use	Project review for 2000-2300°C class hot zones	TaC is used when conventional graphite or SiC coating cannot provide enough high-temperature stability.
Coating Map	Buyer-marked vapor-facing, contact, and masked surfaces	Unclear coating boundaries create fit risk, shadow areas, and early erosion points.
Trace Element Control	Buyer-defined Ta, Fe, Ni, Al, Ca, V, Ti limits	High-value crystal-growth programs need contamination limits agreed before sample production.

Engineering Datasheet

Product-Level Technical Specifications

Values below are RFQ planning targets, not blanket guarantees. Final acceptance criteria should be frozen against drawings, process conditions, equipment model, and buyer qualification requirements.

Parameter	Target / Typical Scope	Engineering Note
Ring geometry	Drawing-defined OD, ID, height, groove, chamfer, step, and mating diameter	Guide rings influence vapor path, thermal field shape, and repeatable hot-zone assembly.
Coating type	CVD TaC coating on vapor-facing and erosion-prone surfaces	Edges, grooves, and flow-facing surfaces must be marked clearly before DFM review.
Flatness and roundness	CTQ tolerance defined by assembly stack and vapor-flow control	Distortion can change ring gap, thermal gradient, and source-vapor guidance.
Edge radius	Minimum edge radius reviewed by coating feasibility	Sharp edges raise coating stress and become common erosion or chipping points.
Coating allowance	Pre-coating and post-coating dimensions reviewed for mating features	Coating thickness can affect ID, OD, groove fit, and stacked ring clearance.
Surface acceptance	Buyer-defined visual, contact, and vapor-facing acceptance criteria	A ring used for flow control should not be accepted with only generic visual inspection.

Trace Impurity Review Table

Semiconductor programs should define restricted elements before sample production. The table helps procurement and process teams turn purity expectations into a measurable qualification file.

Element	Typical Limit	Why Controlled
Fe / Ni / Cr	Restricted by buyer qualification plan	Transition metals are reviewed for high-value SiC PVT hot-zone programs.
Na / K / Ca	Project-specific trace limits	Alkali and alkaline-earth elements can be part of contamination-control screening.
V / Ti	Buyer-defined limits for crystal-growth exposure	Often included when ring erosion or vapor transport contamination is being investigated.
Ta	Reported as coating-related element where requested	Ta is expected from TaC coating but should be treated consistently in buyer-side reports.

RFQ Evidence Package

These records reduce ambiguity before sample approval and repeat-order release.

Ring drawing or sample map with OD, ID, groove, chamfer, flatness, and mating dimensions.
Marked TaC coating map for vapor-facing, edge, groove, and masked surfaces.
Pre-coating and post-coating dimensional checks for fit-critical ring features.
Visual coating photos focused on edges, grooves, and high-erosion surfaces.
Packing method with separators and edge protection for thin or fragile rings.

Equipment Compatibility Review

Compatibility should be treated as an engineering review, not a catalog claim. Equipment-family language helps buyers route the RFQ, while final production still depends on drawings, samples, coating allowance, and acceptance criteria.

Equipment Family	Compatible Part Scope	Buyer Validation Required
SiC PVT hot-zone assemblies	TaC coated guide rings, flow-control rings, expansion rings, and vapor-path shields.	Confirm OD/ID stack-up, ring gaps, source-to-seed distance, vapor-facing surfaces, and existing erosion pattern.
High-temperature induction growth furnaces	Drawing-based ring components used near source, seed, or thermal-gradient control zones.	Confirm furnace interface, thermal-cycle profile, atmosphere, support contact, and handling constraints.
Custom crystal-growth retrofit programs	Replacement rings reverse-engineered from samples, drawings, or mating hot-zone parts.	Confirm which dimensions are worn on the used part so damage is not copied into the new ring.

Open full OEM compatibility matrix

Product Selection Logic

Decision Factor	Selection Logic	Buyer Check
Temperature ceiling	Review TaC coated graphite when the component faces SiC PVT, AlN growth, or vapor exposure beyond the reliable window of standard graphite or SiC coating.	Share maximum temperature, hot-zone position, atmosphere, vapor species, and current lifetime.
Coating feasibility	TaC coating feasibility depends on line-of-sight, feature depth, edge radii, masked surfaces, and final dimensions after coating.	Send drawings with vapor-facing surfaces, seed-contact surfaces, grooves, holes, and uncoated interfaces marked.
Contamination control	High-purity graphite substrate, purification route, and trace-element reporting should be agreed before prototype release.	Define restricted elements, report format, packaging cleanliness, and sample acceptance criteria.

Manufacturing and QC Flow

Stage	Production / QC Checkpoint	Buyer Evidence
1. Process and geometry review	Confirm hot-zone position, growth temperature, vapor exposure, coated surfaces, and masked interfaces.	Marked drawing, process notes, current failure photos, and lifetime target.
2. Substrate and purity plan	Select high-purity graphite substrate and define purification plus trace-element reporting scope.	Material route, ash target, restricted-element list, and COA expectations.
3. Pre-coating machining	Machine OD, ID, grooves, seed-contact surfaces, and CTQ interfaces with coating allowance reviewed.	First-article dimensional data for pre-coating critical features.
4. CVD TaC coating	Deposit TaC on agreed surfaces while controlling coating stress, edge coverage, and shadow risk.	Coating map, visual acceptance criteria, and inspection method agreed before production.
5. Final inspection and clean packing	Inspect contact surfaces, coated areas, fit-critical features, and export protection for brittle coated parts.	Final photos, dimensional checks where required, packing photos, and traceable shipment documents.

RFQ Checklist

Provide OD, ID, height, groove, chamfer, and mating-part drawings
Mark vapor-facing surfaces and masked interfaces
Specify operating temperature, atmosphere, and expected run count
Share photos of erosion, cracking, or coating loss on current rings

Risk Controls

Edge erosion in vapor path: Use coating DFM review for edge radii, grooves, and vapor-facing surfaces before TaC deposition.
Assembly mismatch after coating: Confirm pre-coating and post-coating dimensional checkpoints for critical mating features.

Product Gallery

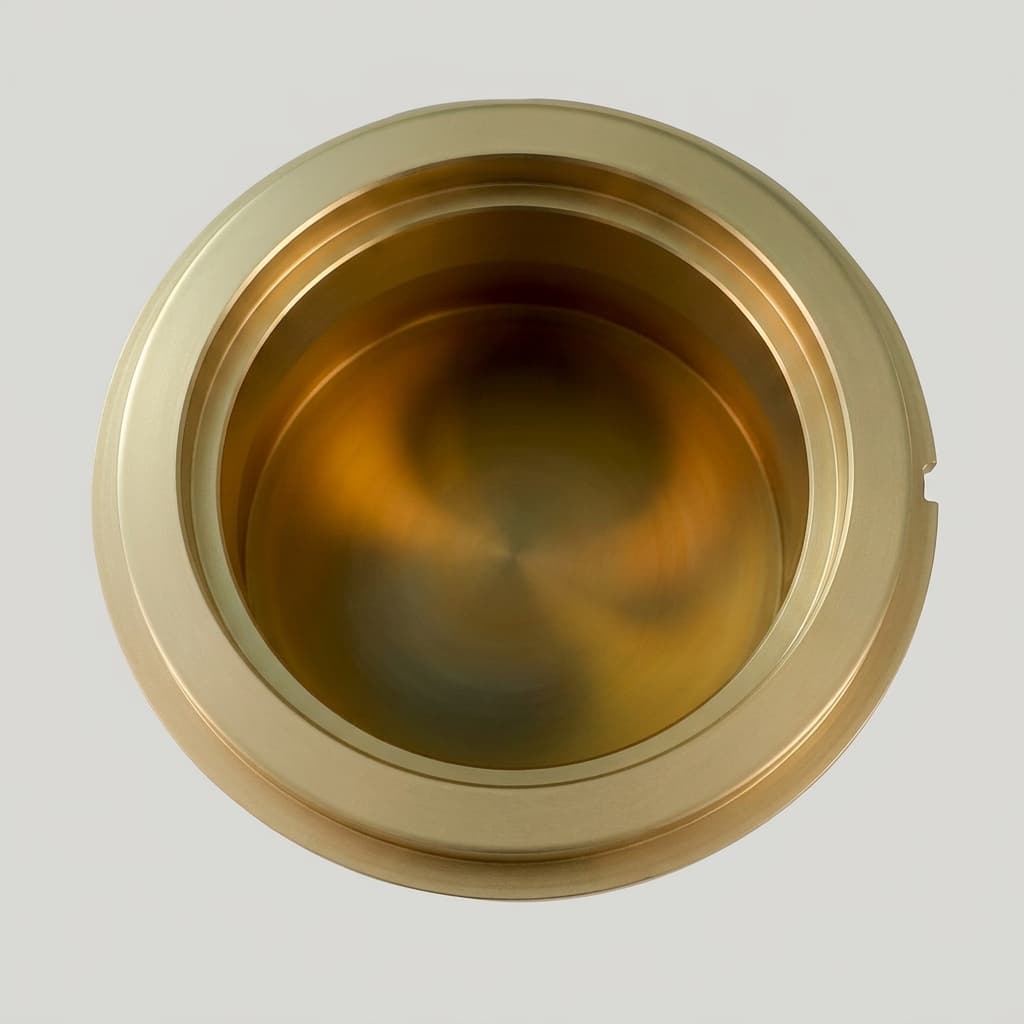

Tantalum carbide coated graphite guide ring for SiC PVT hot zone 2

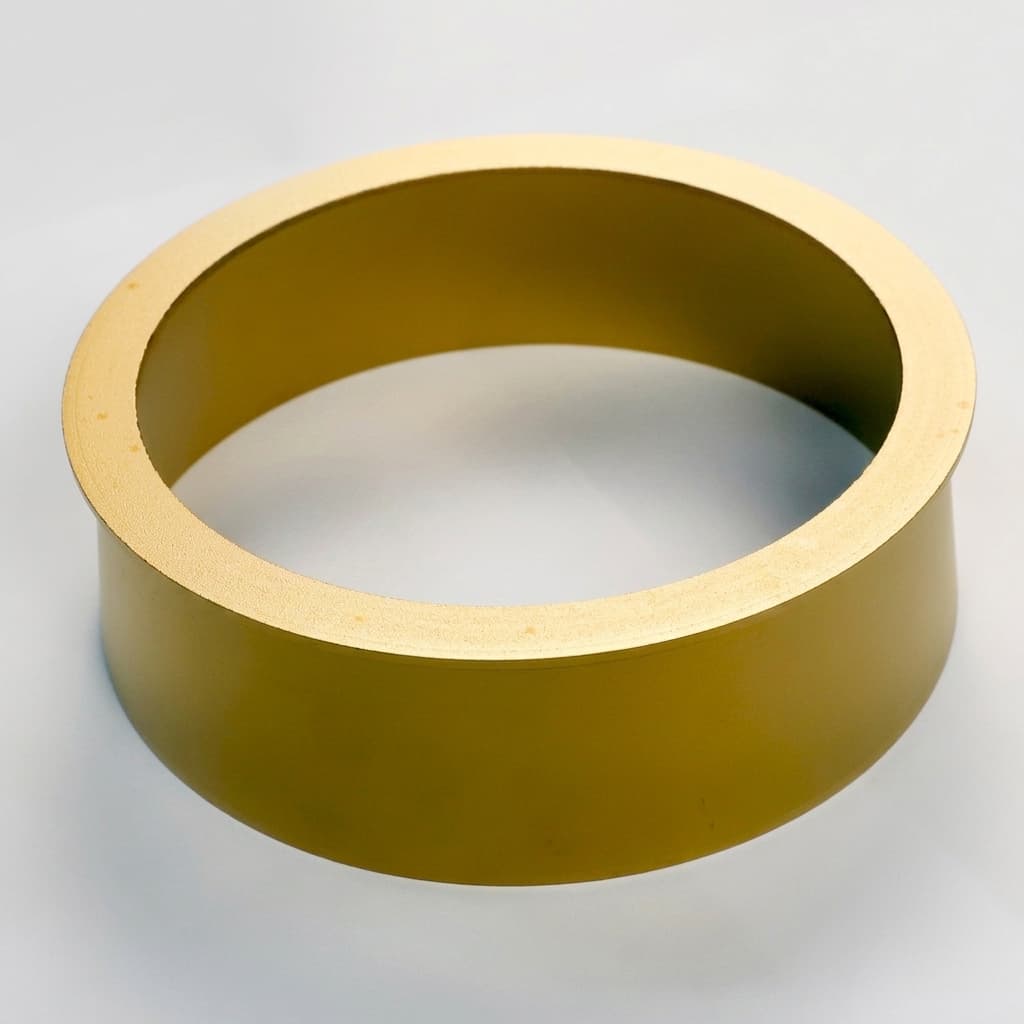

Tantalum carbide coated graphite guide ring for SiC PVT hot zone 3

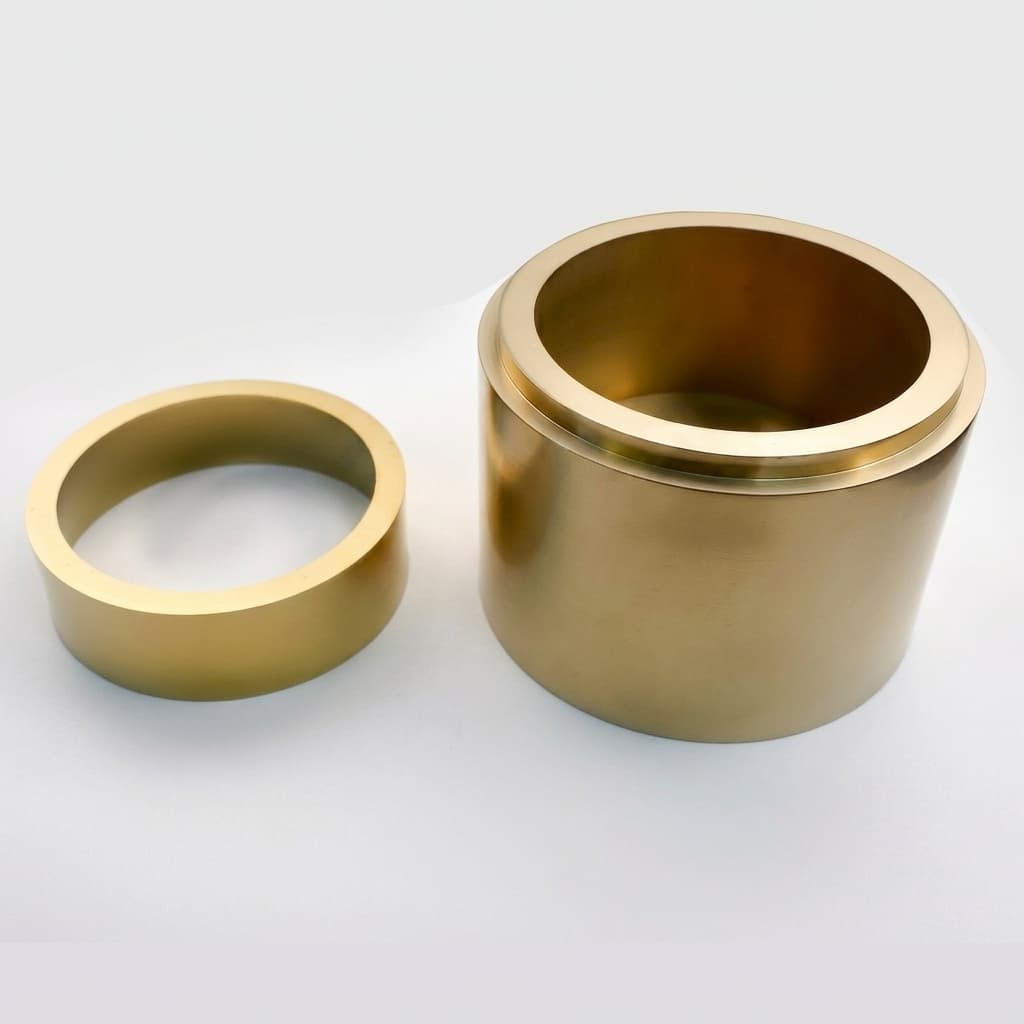

Tantalum carbide coated graphite guide ring for SiC PVT hot zone 4

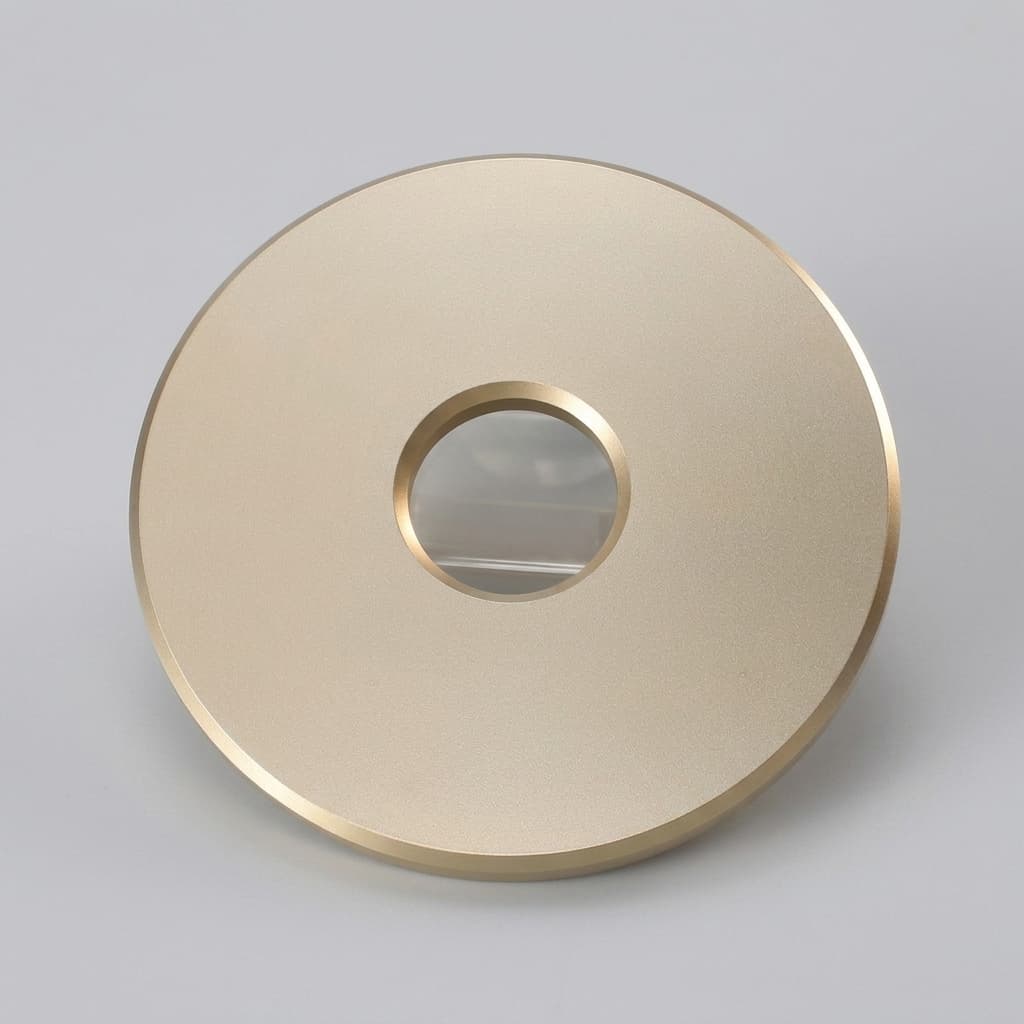

Tantalum carbide coated graphite guide ring for SiC PVT hot zone 5

Buyer FAQ

Can guide rings be quoted from used samples?

Yes, but used samples should be paired with drawings, mating-part information, and failure photos so erosion damage is not copied into the new design.

What makes TaC coating different from SiC coating?

TaC coating is selected for more extreme high-temperature and vapor-corrosion environments, especially SiC PVT and AlN growth zones where SiC coating lifetime may be limited.

What information is required before quoting TaC coated parts?

Send drawings, marked coated surfaces, process temperature, atmosphere, vapor exposure, current failure mode, purity limits, and expected replacement cycle.

Can TaC coated graphite parts be made as direct replacements?

Yes, but coating allowance, masked interfaces, edge radii, and post-coating dimensions must be reviewed so the replacement still fits the furnace assembly.
